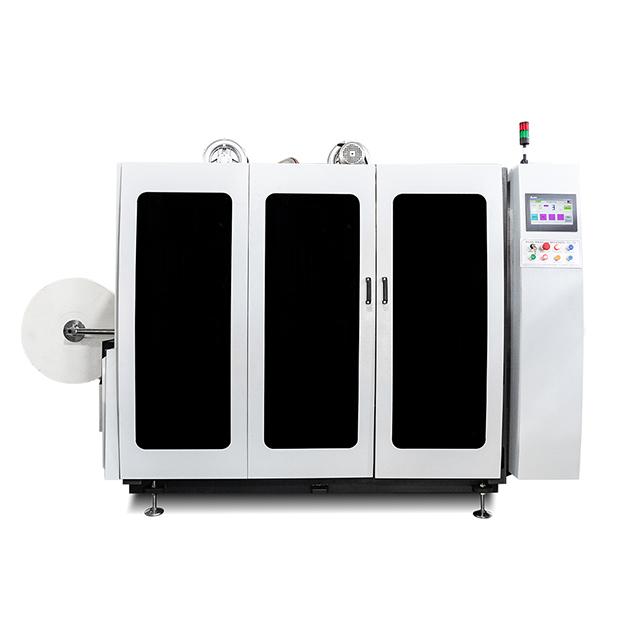

INGO-PC13 — Double-Disc Ultrasonic Paper Cup Forming Machine
Model: INGO-PC13
Rated Speed: 130-150 pcs/min( Speed affected by cup size, paper quality & thickness)
Paper Cup Size: 4-16 OZ (one size cup made by per set moulds, different size cup moulds exchange)
Raw Material: Single PE/double side PE:PLA coated paper cups,aluminum foil paper
Cup Side Welding: Ultrasonic heater
Power/voltage: 50/60HZ,380V/220V(better use 380V,3 Phase )or special Power requirement.
Machine Size: 2800x1540x2000mm(Collection Table 1000x650x1600mm)
Total Weight: GWINW:3500KGS/3400KGS
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.
About This Product
Model: INGO-PC13
Rated Speed: 130-150 pcs/min( Speed affected by cup size, paper quality & thickness)
Paper Cup Size: 4-16 OZ (one size cup made by per set moulds, different size cup moulds exchange)
Raw Material: Single PE/double side PE:PLA coated paper cups,aluminum foil paper
Cup Side Welding: Ultrasonic heater
Power/voltage: 50/60HZ,380V/220V(better use 380V,3 Phase )or special Power requirement.
Machine Size: 2800x1540x2000mm(Collection Table 1000x650x1600mm)
Total Weight: GWINW:3500KGS/3400KGS
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.

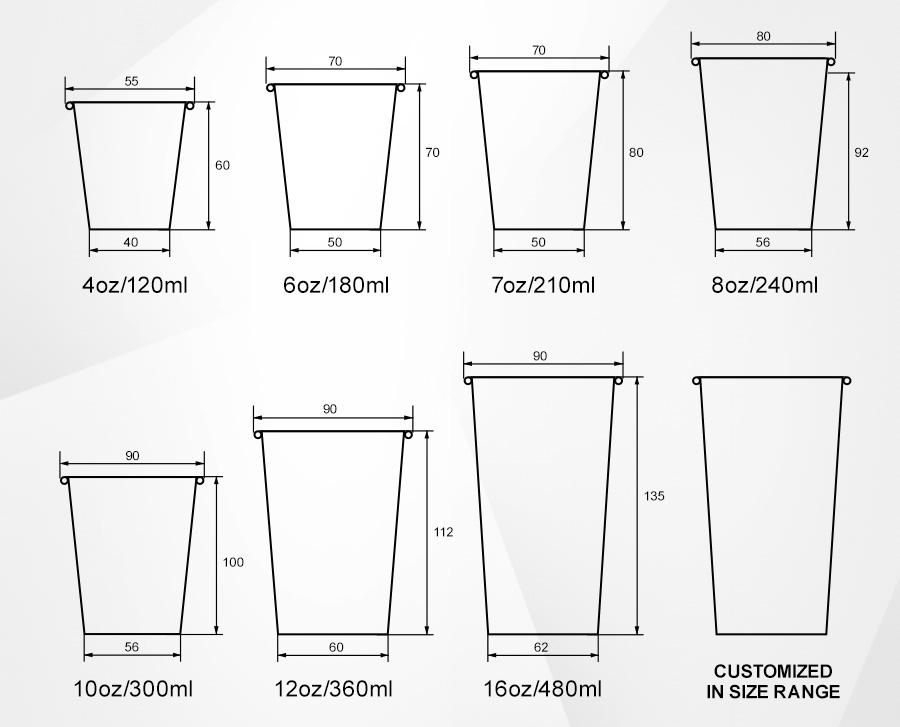

Min. /Max. Size（customizable）

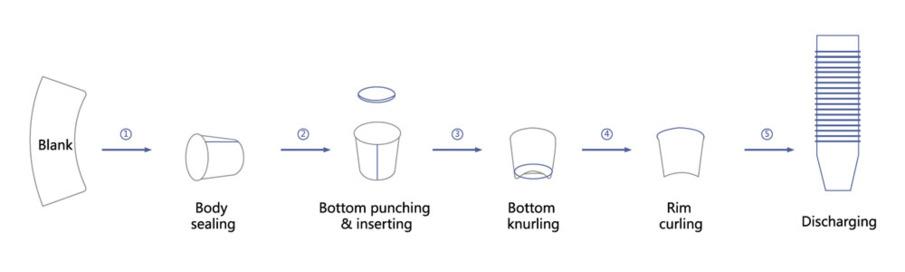

PAPER CUP FORMING PROCESS：

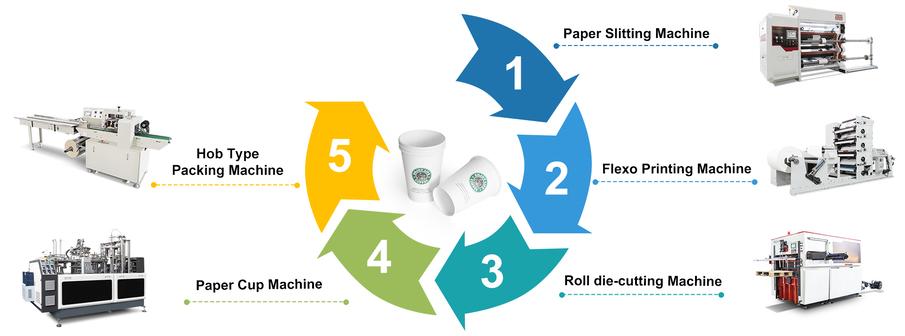

Paper cup production line flow chart：
Printing press-die >> cutting machine >> Paper cup machine >> ＞Paper cup packaging machine

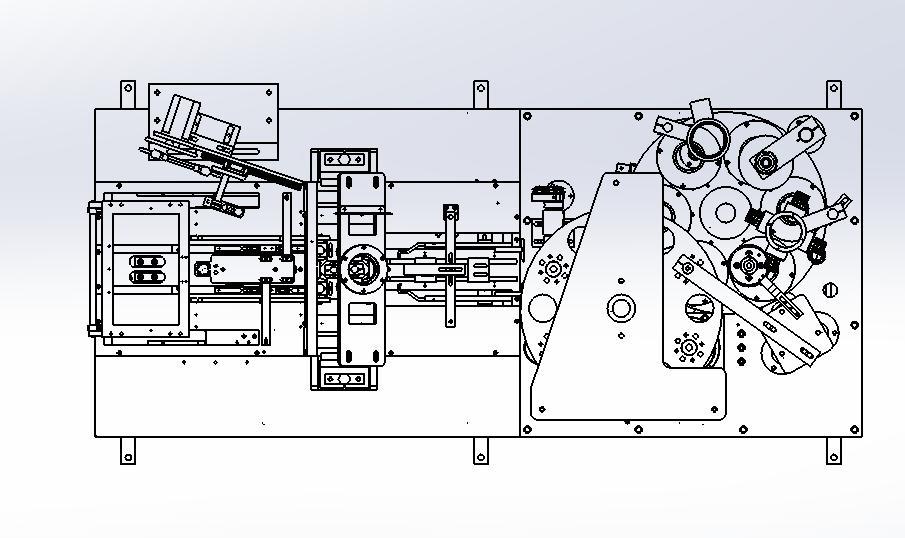

Machine structure：
No additional information available.
